State - Regional Maps

Due Diligence Guidelines Contents

Appropriate Maps

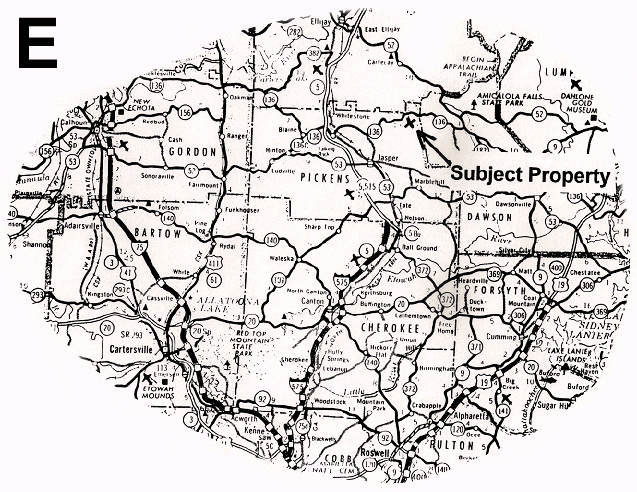

  • Example E
    • Bubble effect beneficial for clarity
    • Scale of map appropriate
    • Subject of map clearly identified
    • Location provided relative to major roads
    • Location provided relative to significant cities
    • Counties clearly identified
    • Could be further improved by:
      • Show North directional arrow
      • Show less detail
      • Show less extraneous information

    Example E

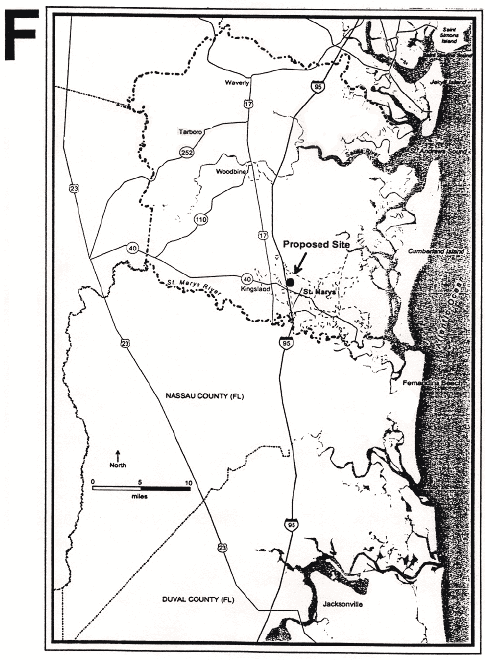

  • Example F
    • Only major roads identified
    • Scale of map appropriate
    • Subject of map clearly identified
    • Location provided relative to major roads
    • Location provided relative to significant cities
    • Could be further improved by:
      • Larger North arrow
      • Identify Counties
      • Larger text to identify subject property
      • Larger text

    Example F

Deficient Maps

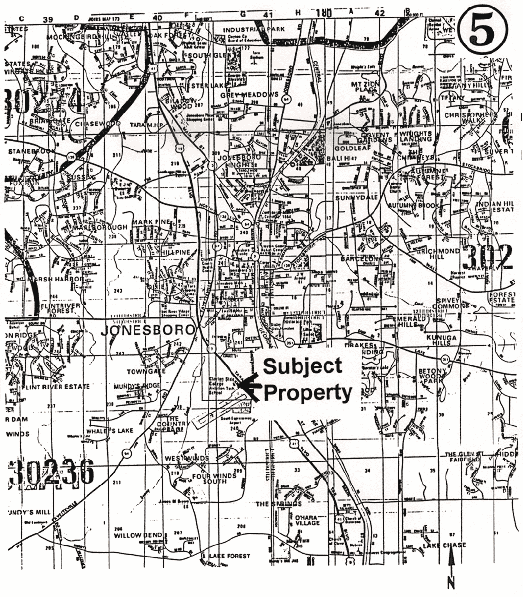

  • Example 5
    • Too much detail
    • Text too small
    • Confusing
    • Extraneous information included

    Example 5

  • Example 6
    • Too much detail
    • Text too small
    • Confusing
    • Extraneous information included
    • Text identifying subject property too small
    • No directional arrow
    • Scale of map too small

    Example 6
